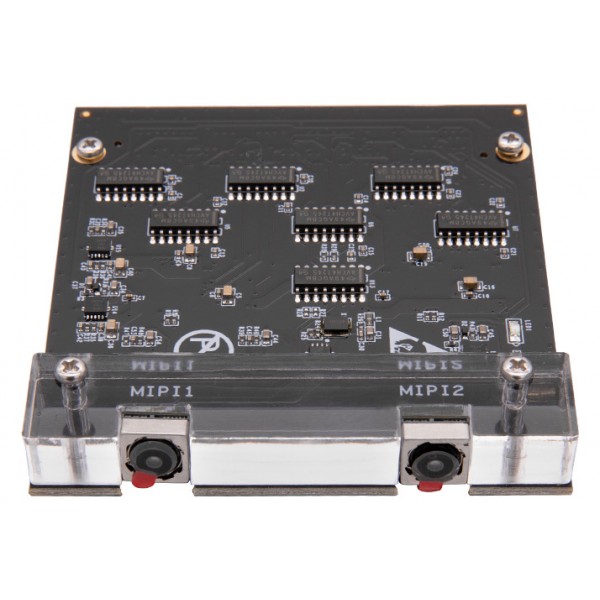

About: Alinx FL0214 Dual Lens MIPI IMX214 CMOS Camera

Alinx FL0214 has a standard FMC LPC interface that can be connected to the ALINX FPGA carrier board for use. Alinx FL0214 is a 2-way 13 megapixel CMOS camera module with MIPI interface. The camera module adopts a CMOS photosensitive chip IMX214.

Features:

Photosensitive Chip: SONY IMX214
Resolution Ratio: 4208 *3120/4K/2K@30fps, 1080P@60fps
Output Format: RAW10/8, COMP8/6
Viewing Angle: 80.7°± 3° (Diag)
Focusing distance: 10CM~infinity
Camera output: CSI-2 serial data output (MIPI 4 Lane, compatible with D-PHY standard V1.1)
Focusing method: The motor automatically focuses
Camera configuration interface: I2C
MC20901 driver chip: level conversion (MIPI D-PHY ->LVDS)
FMC LPC connector
Working Temperature: -20°C-65°C
Dimensions: 76.5 x 69 mm form factor

Model: FL0214
