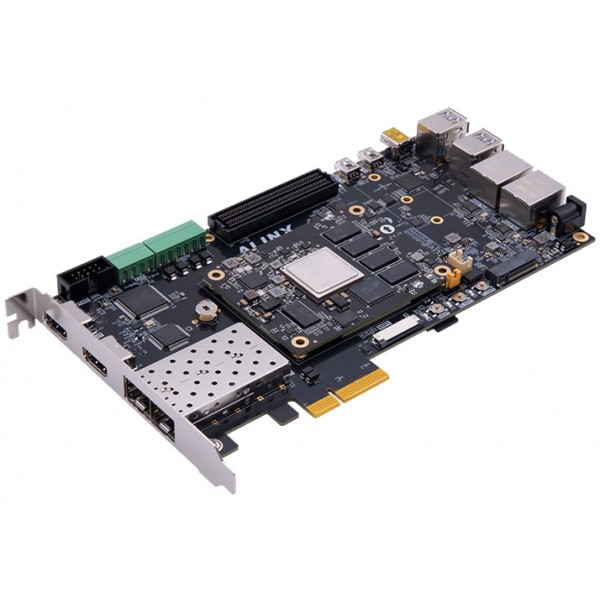

• Alinx AXU5EVB-P MPSoC AMD Zynq FPGA Development Kit

About: Alinx AXU5EVB-P MPSoC AMD Zynq FPGA Development Kit

Alinx AXU5EVB-P MPSoC AMD Zynq FPGA Development Kit offering UltraScale+ MPSoC PCIe 3.0 FPGA Development board, Compatible with a multitude of FMC board (data acquisition, motor control, display camera interfaces, software defined radio), Provide high-speed communication (SFP+), high-speed storage (M.2) and video applications (DP, HDMI).

Features:

1 x FMC LPC connector (36 pairs lvds ios 1.8V)
2 x SFP+ (per line 12.5Gbps)
2 x Gigabit Ethernet (1 x PS + 1 x PL)
1 x PCIe® Gen3 ×2
1 x M.2 Card slot on PS
2 x UART (1 x PS + 1 x PL)(USB to UART)
1 x DP Interface on PS
1 x 2 lane MIPI on PL
2 x CAN on PS
2 x RS485 on PL
2 x USB3.0 on PS + 2 x USB2.0 on PS
EEPROM: 4-Kbit I2C Serial EEPROM + 1 x Temperature sensor (LM75)
2 x HDMI (1 x HDMI in + 1 x HDMI out)
1 x Micro SD
1 x RTC (Real-time clock)
LED (1 x pwr + 1 x done + 1 x PL) + KEY (1 x RST + 1 x PS + 1 x PL)
12V single supply
Dimensions: 225.81 x 106.65 mm form factor

Model: AXU5EVB-P

Write a review

Note: HTML is not translated!
   Bad           Good
Captcha

Alinx AXU5EVB-P MPSoC AMD Zynq FPGA Development Kit

  • Brands Alinx
  • Product Code:AXU5EVB-P
  • Availability:In Stock
  • $1,204.00
