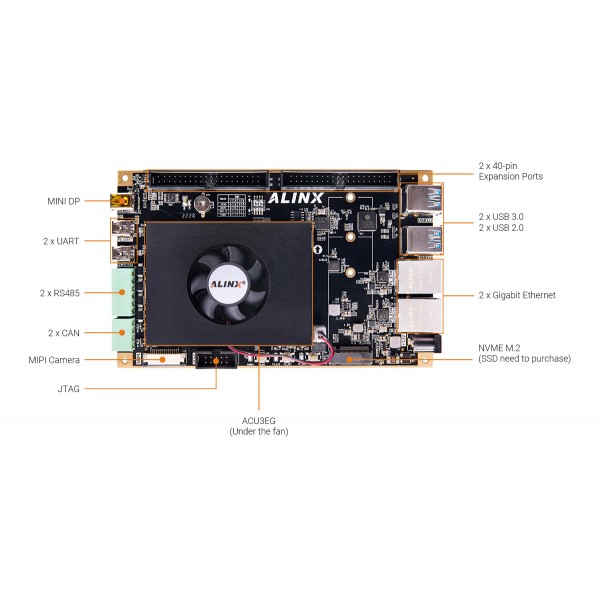

• Alinx AXU3EGB Development Board MPSoC

About: Alinx AXU3EGB Development Board MPSoC

Alinx AXU3EGB Development Board equipped with the AMD Zynq UltraScale+ MPSoC-series device, delivers standout performance with DDR4 SDRAM, eMMC Flash, QSPI Flash, DP, M.2, CAN/RS485, suitable for artificial intelligence, computing, automotive, industrial, video, and communication, etc.

Features:

1 x M.2 Card slot on PS
1 x DP Interface on PS
1 x 2 lane MIPI on PL
2 x CAN on ps
2 x RS485 on PL
2 x USB3.0 on PS + 2 x USB2.0 on PS
EEPROM: 4-Kbit I2C Serial EEPROM + 1 x Temperature sensor (LM75)
2 x Gigabit Ethernet (1 x PS + 1 x PL)
2 x UART (1 x PS + 1 x PL) (USB to UART)
1 x Micro SD
1 x RTC (Real-time clock)
2 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
LED (1 x pwr + 1 x PL + 1 x PS) + KEY (1 x RST + 1 x PS + 1 x PL)
12V single supply
Dimensions: 160 x 100 mm form factor

Model: AXU3EGB

Write a review

Note: HTML is not translated!
   Bad           Good

Alinx AXU3EGB Development Board MPSoC

  • Brands Alinx
  • Product Code:AXU3EGB
  • Availability:In Stock
  • $695.00
