• Alinx AXU15EGB Board Kit AMD Zynq MPSoC

About: Alinx AXU15EGB Board Kit AMD Zynq MPSoC

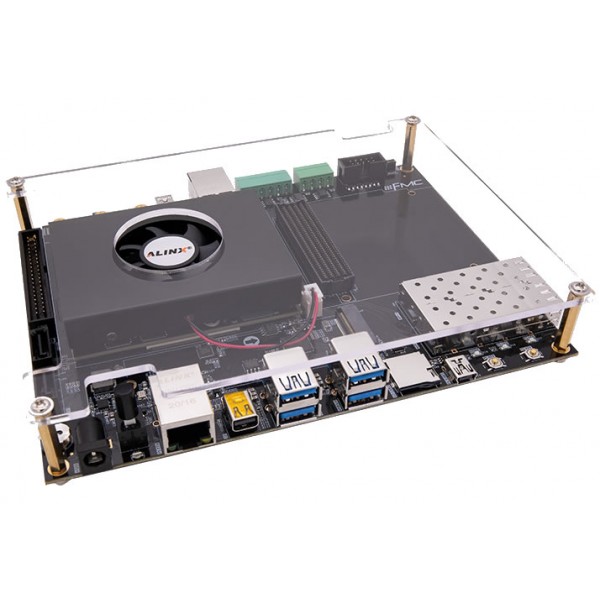

Alinx AXU15EGB Board Kit AMD Zynq MPSoC ZU15EG offers standout performance with DDR4 SDRAM, eMMC Flash, QSPI Flash, SFP+, PCIe, FMC HPC, M.2, DP, CAN/RS485, suitable for Artificial Intelligence, Computing, Automotive, Industrial, Video, and Communication, etc.

Features:

1 x FMC HPC Connector (36 pairs lvds ios + 8 pairs GTH)
2 x SFP+ Slots (per line 12.5Gbps)
2 x Gigabit Ethernet (1 x PS + 1 x PL)
2 x UART (1 x PS + 1 x PL)(USB to UART)
1 x M.2 Interface on PS
1 x DP Interface on PS
1 x 2 lane MIPI on PL
2 x CAN on PS
2 x RS485 on PL
2 x USB3.0 on PS + 2 x USB2.0 on PS
1x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
EEPROM: 4-Kbit I2C Serial EEPROM + 1 x Temperature sensor (LM75)
1 x Micro SD
1 x RTC (Real-time clock)
LED (1 x pwr + 1 x done + 1 x PL) + KEY (1 x RST + 1 x PS + 1 x PL)
12V single supply
Dimensions: 180 x 135 mm form factor

Model: AXU15EGB

Write a review

Note: HTML is not translated!
   Bad           Good
Captcha

Alinx AXU15EGB Board Kit AMD Zynq MPSoC

  • Brands Alinx
  • Product Code:AXU15EGB
  • Availability:In Stock
  • $2,295.00
