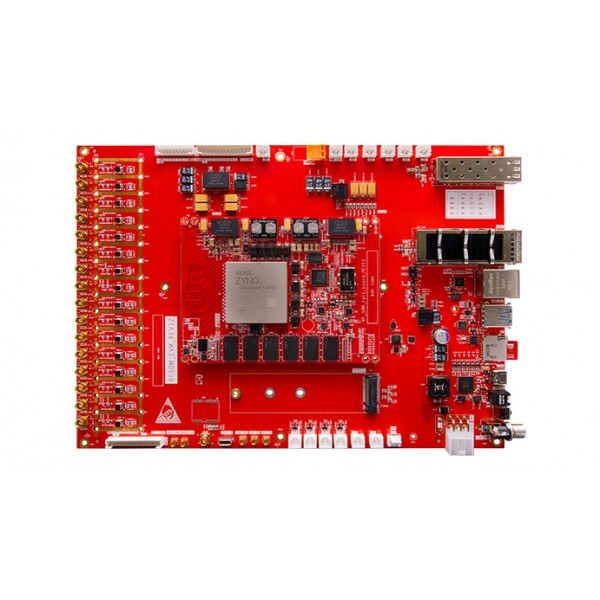

About: Alinx AXRF47 Development Board Kit

Alinx AXRF47 Development Board Kit supports 8-way 14bit RF-ADC with a maximum sampling rate of 5GSPS, and 8-way 14bit RF-DAC with a maximum sampling rate of 9.85GSPS. The RF input and output frequency response fully supports the frequency band below 6GHz. Provide a comprehensive RF signal chain, maximize input/output channel density, high bandwidth, heterogeneous processing capabilities, and low power consumption.

AXRF47 development board offers Zynq UltraScale+RFSoC Gen3 series ZU47DR FPGA chip, integrating RF direct sampling data converter, FPGA logic, complete ARM processor subsystem, and high-speed transceiver.

Features:

1 x M.2 Interface
1 x QSFP28 fiber optic
1 x SFP28 fiber optic
1 x Gigabit Ethernet
1 x USB3.0
1 x UART on PS (USB to UART)
IO x8（PL x2）,IO x10（PS x1）
1 x JTAG
1 x Micro SD
EEPROM: 4-Kbit I2C Serial EEPROM + 1 x Temperature sensor (LM75)
4 x LED
1 x KEY (1 x RESET )
12V single supply
Dimensions: 254 x 180 mm form factor

Model: AXRF47

Alinx AXRF47 Development Board Kit

Brands Alinx
Product Code:AXRF47
Availability:In Stock

$13,995.00
