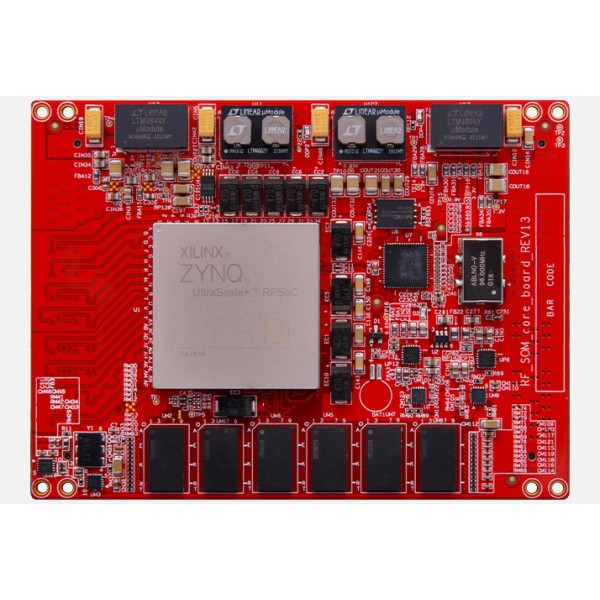

• Alinx ACRF47 System-on-Module Zynq RFSoC XCZU47DR

About: Alinx ACRF47 System-on-Module Zynq RFSoC XCZU47DR

Alinx ACRF47 System-on-Module Zynq RFSoC XCZU47DR combines high-end device with fast DDR4 SDRAM,dual parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. Integrate hardware and software to help you provide a prototype of a high-performance wireless receiver system and perform air signal acquisition and analysis.

Features:

AMD/Xilinx Zynq™ Ultrascale+™ RFSoC:
ARM® quad-core Cortex™-A53 up to 1.333GHz
ARM® dual-core Cortex™-R5F up to 533MHz
16nm FinFET+ FPGA fabric
Digital RF-ADC, RF-DAC
Pluggable module with 2 x Samtec board-to-board connectors
4 GByte (64-bit) DDR4 SDRAM on PS
2 GByte (32-bit) DDR4 SDRAM on PL
128MB  QSPI Flash
Gigabit transceivers 8 x PL GTY, up to 28.21 Gbps
4 x PS-GTR, up to 6 Gbps
8 x 14bit ADC, up to 5GSPS
8 x 14bit DAC, up to 9.85GSPS
Work temperature range of -40°C to +85°C
5V single supply
Dimensions: 115 x 85 mm form factor

Model: ACRF47

Write a review

Note: HTML is not translated!
   Bad           Good
Captcha

Alinx ACRF47 System-on-Module Zynq RFSoC XCZU47DR

  • Brands Alinx
  • Product Code:ACRF47
  • Availability:In Stock
  • $11,995.00
