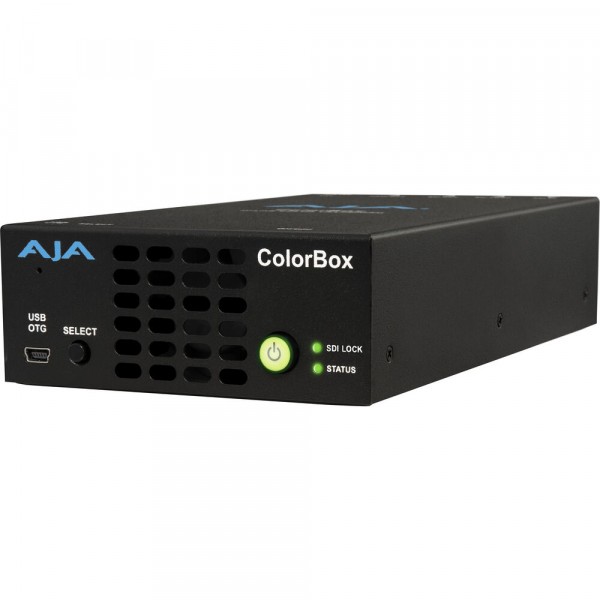

About: AJA ColorBox HDR/SDR Color Converter

AJA ColorBox HDR/SDR Color Converter is built around a 33-point 3D LUT processor with tetrahedral interpolation, the AJA Color Pipeline provides additional 4x 1D LUTs and 2x 3x3 matrices that are each individually configurable or can be converted to Proc Amps or RGB Color Correctors. All of the color processing options can be easily managed via the web user interface, which can be accessed directly from a wired Ethernet connection.

Features:

12-bit 4:4:4 12G-SDI I/O for up to 4K/UltraHD HDR/WCG 30p
10-bit 4:2:2 12G-SDI I/O for up to 4K/UltraHD HDR/WCG 60p
12-bit 4:4:4 HDMI 2.0 output for up to 4K/UltraHD HDR/WCG 30p
10-bit 4:2:2 HDMI 2.0 output for up to 4K/UltraHD HDR/WCG 60p
Ultra-low latency, less than ½ a video line
Extensive AJA Color Pipeline built around the 33-point 3D LUT processor with tetrahedral interpolation
7x nodes plus Overlay
1x 3D LUT processor, user configurable as 3D LUT or Dynamic
4x 1D LUT processors, user configurable as 1D LUT, Dynamic, or Color Corrector
2x 3x3 Matrix processors, user configurable as 3x3 Matrix, Dynamic, or ProcAmp
Supports industry standard file types, no conversion to proprietary format required
Configurable Color Space, Range, and Transfer Characteristic
Full frame LUT processing
Six Color Processing Pipelines
AJA Color
Colorfront (Free and Licensable option)
ORION-CONVERT (Licensable option)
BBC HLG LUT (Licensable option)
NBCU LUTs
ACES
Down-convert 4K to 2K or UltraHD to HD via SDI and/or HDMI outputs
4K/2K Crop for HDMI output
Video Preview in web user interface for confidence monitoring
Built-in Frame Store
Up to 4K/UltraHD frame capture and recall
Capture pre or post-processed images
Test Pattern up to 4K/UltraHD, 14 test patterns built-in
Overlay information on output
User Text
User Overlay
Input and Output signal information
Pipeline Configuration
Overlay can be captured with image for future reference
